High quality C channel punching round holes drywall stud and track roll forming machine

Product Categories

Tianjin Ironstar industry co,.Ltd

Contact Now

Name: High quality C channel punching round holes drywall stud and track roll forming machine
Brand: IRONSTAR
Price: 1 USD

Brand Name : IRONSTAR

Place of Origin : CHINA

Contact Now

NO	Type		Specification
1	Raw material	Type	Galvanized steel
		Feeding width	As customer' drawing
		Thickness	0.3-0.6 mm
2	Decoiler	Operation	Manual
2	Decoiler	Weight apacity	3 Tons
3	Main body	Roller station	12 rows
		Diameter of shaft	55 mm
		Shaft material	45# with 0.05mm chrome
		Roller material	45# with 0.05mm chrome
		Frame	Steel plate welding
		Frame thickness	16 mm
		Machine size	About 5.50.81 m
		Machine weight	About 1.8 tons
		Machine color	As customer need
		Operation	Hydraulic automatic
		Working speed	Common speed 30-50 m/min
4	Cutter	Hardness	50-65 HRC
		Cutting tolerance	± 1mm
		Material	Cr 12
		Operate	Hydraulic cutting
5	Power	Driving way	Chain 1 inch
		Main motor	4 KW
		Pump motor for cutter	3 KW
		Voltage	380V/50HZ, 3 phase or as customer' request
6	Control box	Electric box	PLC control system, inventer
		Screen	Touchable screen
		PLC brand	Delta made in Taiwan
		Inverter brand	Delta made in Taiwan or SAJ
		Language	Chinese and English or as customer' request
7	Stacker	Operation	Manual
7	Stacker	Length	2-3 m

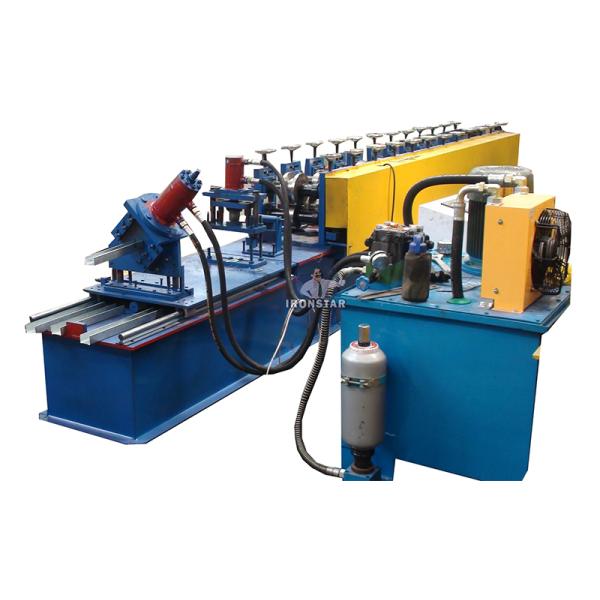

High quality C channel punching round holes drywall stud and track roll forming machine Images
